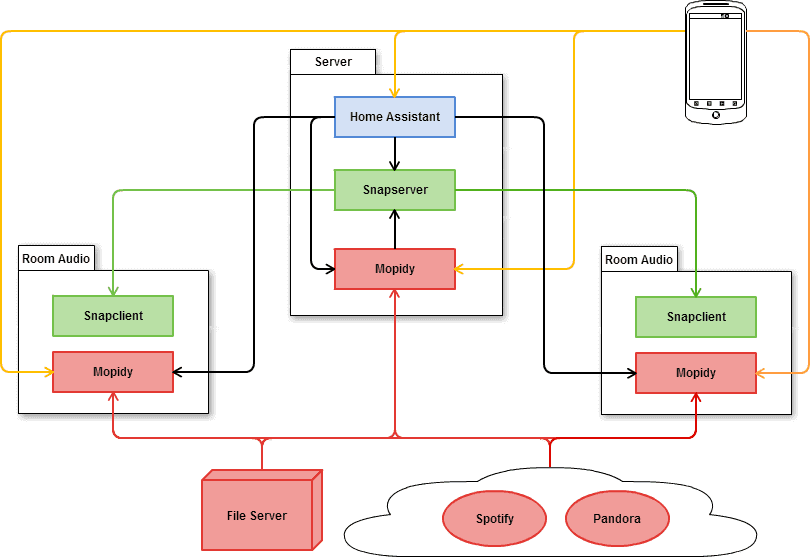

Initial plan for a MultiRoom Audio / video Entertainment System



Master Bedroom

Quantity Description Manufacture number
1 ROKU Streambar 4K / HD / HDR Streaming Device and Premium Audio(Dolby Audio Certified), All in One 4 speakers and bass/ support Ethernet
9102MX
1 TRENDnet USB 2.0 to 10/100 fast Ethernet LAN wired network adapter ‎TU2-ET100
1 Kodak Luma 350 proyector
1 100 inch Motorized Screen PRO-020
1 Braket and mechanism for proyector(custombuild) NONE
1 Roku Subwoofer 200W/ Connects to SoundBar
1 Raspberry PI 3B+ with Extreme SD card 32 gb
1 HIFIBERRY DIGI+ STANDARD
Living Room
Quantity Description Manufacture number
1 ROKU Streambar 4K / HD / HDR Streaming Device and Premium Audio(Dolby Audio Certified), All in One 4 speakers and bass/ support Ethernet
9102MX
1 TRENDnet USB 2.0 to 10/100 fast Ethernet LAN wired network adapter ‎TU2-ET100
1 Kodak Luma 350 proyector
1 100 inch Motorized Screen PRO-020
1 Braket and mechanism for proyector(custombuild) NONE
1 Roku Subwoofer / Connects to SoundBar
1 Raspberry PI 3B+ with Extreme SD card 32 gb
1 HIFIBERRY DIGI+ STANDARD
Kitchen
Quantity Description Manufacture number
1 Raspberry PI 3B+ with Extreme SD card 32 gb
1 Pair of JBL Control 24CT Micro 4.5" Background Music Ceiling Loudspeaker (White) Control 24CT Micro
1 HIFIBERRY AMP2 High Efficient 60W Class D Amplifier AMP2
1 Power Supply 24V 4A MeanWell
1 IP68 Case
Patio
Quantity Description Manufacture number
2 Episode® 350 Series All Weather In-Ceiling Speakers (Pair) ES-AW350T-IC-6
1 Raspberry PI 3B+ with Extreme SD card 32 gb
1 HIFIBERRY AMP100 High Efficient 200W Class D Amplifier AMP100
1 Power Supply 30V 7A MeanWell
1 IP68 Case
Bathroom
Quantity Description Manufacture number
1 Raspberry PI 3B+ with Extreme SD card 32 gb
1 Episode® 350 Series All Weather In-Ceiling Dual Voice Coil Speaker
1 HIFIBERRY AMP100 High Efficient 200W Class D Amplifier AMP100
1 Power Supply 30V 7A MeanWell
1 IP68 Case
Spar Entrance

Quantity Description Manufacture number
1 Raspberry PI 3B+ with Extreme SD card 32 gb RPI 3B+
1 Pair of JBL Control 24CT Micro 4.5" Background Music Ceiling Loudspeaker (White) Control 24CT Micro
1 HIFIBERRY AMP2 High Efficient 60W Class D Amplifier AMP2
1 Power Supply 24V 4A MeanWell
1 IP68 Case
